Sun | 700 nano Textile Printer®



Printing width: 71" (1,8m)

Reliable and speedy wide-format Textile printer for high-quality printing on wide range of Fabric /Textile substrates.

















• Textile roll and auto feeding system  for direct printing on most fabrics / textiles.

• Ink Feeding Supply System (IFSS) for unattended continuous printing.

• Can be added a large ink station system to run multiples printers simultaneously.

• Ink collection system, reduce waste and ink cost for about 98%.

• Built-In heating system for fast and ready printing on different fabric / textile substrates.

• Auto cleaning and parking system for improved and constant print quality.

• Unique design ensures continuous quality printing, smooth media feeding and guarantee constant roll tension.

• Speed: Up to 220 sm2/h ( 8 print heads system) and up to 110 sm2/h ( 4 print heads system).

• HS electronics ensures speedy and stable printer operation.

• The Sun | 700 nano Textile Printer is designed for direct printing on most fabric / textiles like: cotton, polyester, synthetic materials, wool, nylon, silk and many other fabric / textiles.

• Unmatched detailed print quality ensures by SunJet print heads

• Environmentally friendly technology - no ozone emissions! Printed images are totally 'green' and can be used everywhere, even at home without any apprehension.

• Better Color gamut: Standard: CMYK nano Textile Inks®. Option of custom colors available.

• Print Heads: Ricoh GEN 5 with variable dot and Gray Scale from 7 to 35 PL.

• Resolution: 360x720 dpi x (600 / 1200 / 2400 dpi)

• Operating temperature: 37oC (Unique)

• RIP: Wasatch SoftRip TX.

• File types: EPS/TIF/PSD/DWG/HPG/HGL/PLT/PS/ 2PS/FJB/JPG/BMP

• Electricity:  380 VAC, 50Hz, 7.5A

• Environment requirements Temperature range: 68 - 77 F (20-25C)

• Relative air humidity: 35-65%

• Printer Dimensions:  Length: 12.5' (3800mm) Width:  2.5' (762mm) Height: 5' (1524mm)

• Printer weight Approximately: 3,215 lbs. (1,200  kg).























Sun | 700 nano Textile Printer®

Individual Negative Control System

Provides Single color control on

various colors.

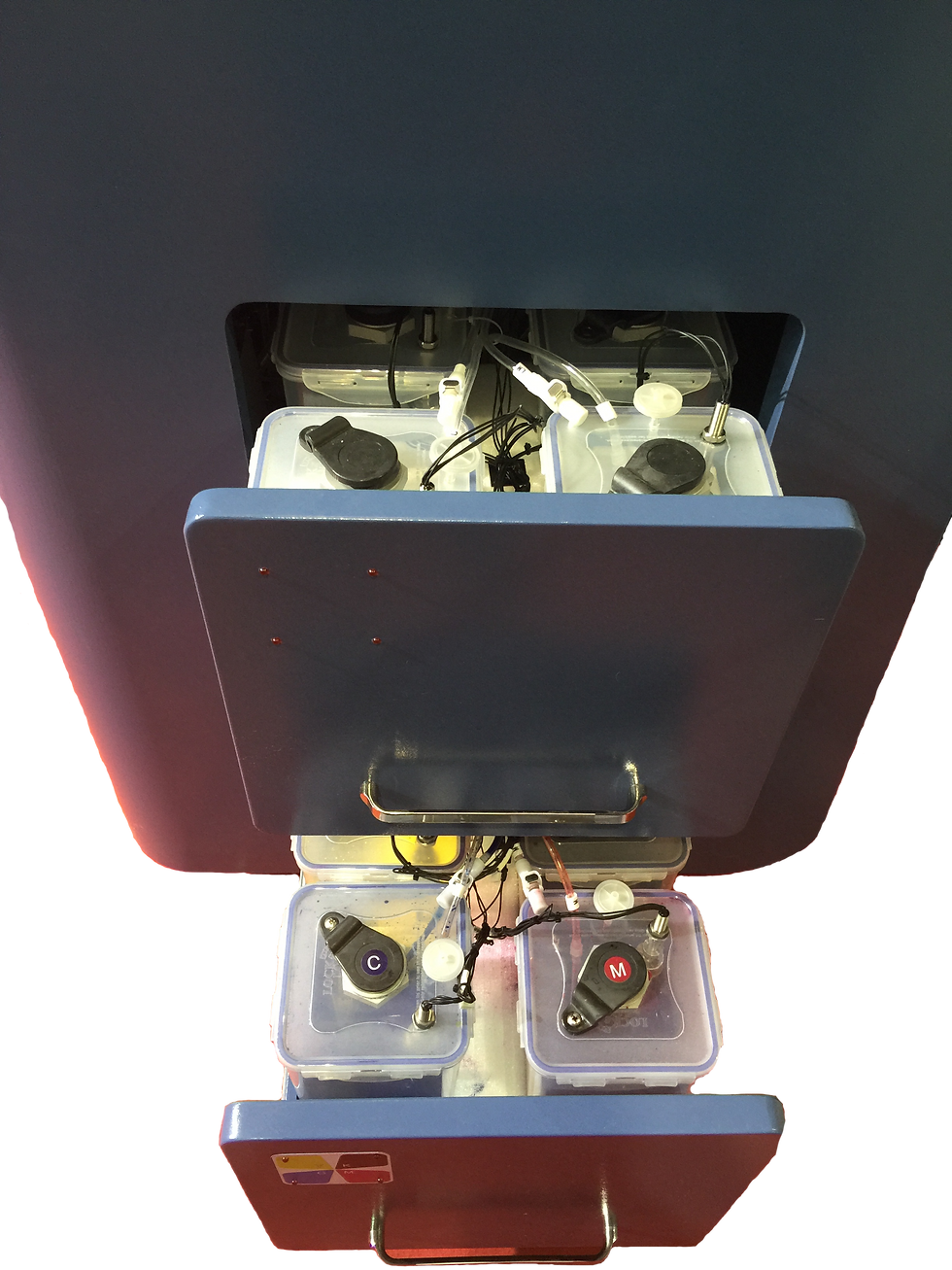

Ink Feeding Supply System (IFSS)

Easy to change, 3.7 L system allows

for stable and continuous ink supplying.

Textile Rolling & Auto Feeding System

Flexible for direct printing on most

Fabric / Textile substrates.

.

Ricoh GEN 5 Print Heads

360 x 720 dpi x 600/1200/2400 dpi Resolution

Variable dot 7-35 PL / Grey Scale

1280 nozzles, integrated heater.

.

Ink Collection System

Greatly reduces the waste and cost

and utilization of inks about 98%.

Reduce pollution to the environment.

.

SunJet 700 nano Textile Printer®
